BMW. E30. Детали узла
Модель: 325ix
Тип: 1271
Регион:Европа
Кузов: 2-дверный
Группа 27. Раздаточная коробка/коробка передач E

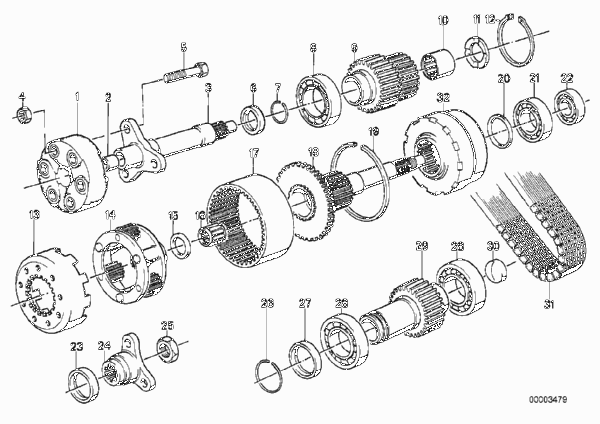

Узел 27.0003. Раздаточная коробка
| 01 | | LK=96MM/D=146MM | 1 | 26 11 1 209 168 | | | М | |
| 01 | | LK=96MM/12 | 1 | 26 11 7 511 454 | | | М | |
| 02 | | 14X16X20 | 1 | 27 21 1 224 680 | | | М | |
| 02 | | 14,2X16X20 | 1 | 27 21 1 227 157 | | | М | |
| 03 | | | 1 | 27 21 1 224 630 | | | М | |
| 04 | | M12X1,5-10-PHR | 6 | 07 12 9 900 047 | | | М | |
| 05 | | M12X1,5X56 | 3 | 27 10 1 220 647 | | | М | |
| 06 | | 40X52X7 | 2 | 27 11 1 226 314 | | | А | |
| 06 | | 32X47X7 | 1 | 27 21 1 224 632 | | | М | |
| 07 | | | 1 | 27 21 1 224 631 | | | | |
| 08 | | 45X75X16 | 1 | 07 11 9 981 063 | | | | |
| 09 | | | 1 | 27 24 1 227 039 | | | | |
| -- | | | 1 | 27 24 1 226 617 | | | | |
| -- | | | 1 | 27 24 1 227 036 | | | | |
| -- | | | 1 | 27 24 1 227 037 | | | | |
| 10 | | | 1 | 27 24 1 224 659 | | | | |
| 11 | | | 1 | 27 24 1 224 664 | | | | |
| 12 | | 65X2,5 | 1 | 07 11 9 934 255 | | | | |
| 13 | | | 1 | 27 24 1 224 666 | | 02.1987 | | |
| 13 | | | 1 | 27 24 1 226 617 | 02.1987 | | | |
| -- | | | 1 | 27 24 1 227 039 | 02.1987 | | | |
| 14 | | | 1 | 27 22 1 224 642 | | | | |
| 15 | | 27,6X35X1,5 | 1 | 27 22 1 224 644 | | | | |
| 15 | | 27,6X35X1,8 | 1 | 27 22 1 224 645 | | | | |
| 15 | | 27,6X35X2,1 | 1 | 27 22 1 224 646 | | | | |
| 15 | | 27,6X35X2,4 | 1 | 27 22 1 224 647 | | | | |
| 15 | | 27,6X35X2,7 | 1 | 27 22 1 224 648 | | | | |
| 15 | | 27,6X35X3,0 | 1 | 27 22 1 224 649 | | | | |
| 16 | | | 1 | 27 21 1 224 637 | | | | |
| 17 | | | 1 | 27 22 1 224 643 | | | | |
| 18 | | | 1 | 27 21 1 224 635 | | 02.1987 | | |
| 18 | | | 1 | 27 21 1 226 663 | 02.1987 | | | |
| 19 | | | 1 | 27 22 1 224 640 | | | | |
| 20 | | 35,3X47X2 | 1 | 27 21 1 224 681 | | 02.1987 | | |
| 20 | | 35,3X50X2 | 1 | 27 21 1 226 472 | 02.1987 | | | |
| 21 | | 35X62X14 | 1 | 07 11 9 981 054 | | | | |
| 22 | | 25X47X12 | 1 | 07 11 9 981 047 | | | | |
| 23 | | 35X47X7 | 1 | 27 21 1 224 636 | | | | |
| 24 | | | 1 | 27 21 1 224 633 | | | | |
| 25 | | | 1 | 27 21 1 224 634 | | | | |
| 26 | | | 1 | 27 24 1 224 662 | | | | |
| 27 | | 44X60X10 | 2 | 27 24 1 224 660 | | | | |
| 28 | | 45X75X10 | 2 | 07 11 9 981 724 | | | | |
| 29 | | | 1 | 27 24 1 227 037 | | | | |
| -- | | | 1 | 27 24 1 227 036 | | | | |
| -- | | | 1 | 27 24 1 227 039 | | | | |
| 30 | | D=36MM | 1 | 11 11 1 717 939 | | | | |
| 31 | | | 1 | 27 24 1 227 036 | | | | |
| -- | | | 1 | 27 24 1 227 037 | | | | |
| -- | | | 1 | 27 24 1 227 039 | | | | |
| 32 | | | 1 | 27 24 1 226 401 | 02.1987 | | | |
| -- | | | X | 27 11 1 226 799 | 02.1987 | | | |
| 32 | Отсутствует, вместо него использовать отдел.дет. - см. Каталог запчастей
или Оборотная раздаточная коробка | | 1 | 27 00 1 226 481 | | 02.1987 | | |
