BMW. T27. Детали узла
Модель: R27
Тип: 0T15
Регион:Европа
Кузов: без
Группа 34. Тормозные механизмы

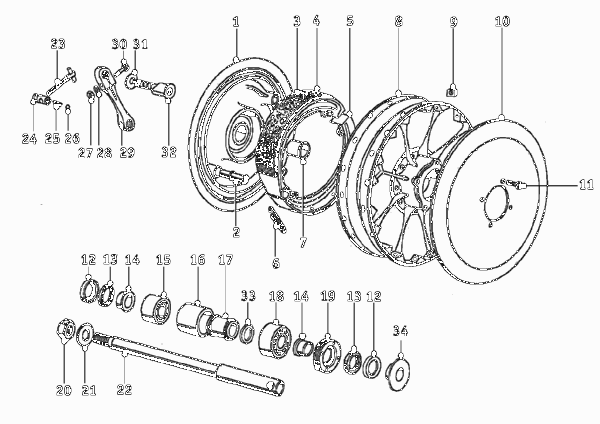

Узел 34.0906. Тормозные механизмы
| 03 | | C3X10 | 32 | 07 11 9 949 213 | | | | |
| 04 | | | 4 | 34 11 2 060 132 | | | | |
| 06 | | | 2 | 34 11 2 060 134 | | | | |
| 09 | | | 36 | 36 31 4 038 173 | 08.1955 | 08.1966 | | |
| 10 | | | 1 | 36 31 4 038 165 | | | | |
| 11 | | | 4 | 36 31 4 038 181 | | | | |
| 12 | | | 2 | 36 31 4 038 157 | | | | |
| 13 | | | 2 | 36 31 4 038 155 | | | | |
| 14 | | 9,2MM | 1 | 36 31 4 038 142 | | | | |
| 15 | | 40X17X14 | 1 | 07 11 9 985 005 | | | | |
| 16 | | R26-27 | 1 | 36 31 4 038 131 | | | | |
| 17 | | R26/27 | 1 | 36 31 4 038 127 | 08.1955 | 08.1966 | | |
| 18 | | 40X17X14 | 1 | 07 11 9 985 005 | | | | |
| 19 | | | 1 | 36 31 4 038 162 | | | | |
| 20 | | M14X1,5 | 1 | 07 11 9 922 159 | | | | |
| 21 | | | 1 | 07 11 9 931 089 | | | | |
| 21 | | A15 | 1 | 07 11 9 900 530 | | | | |
| 21 | | A15 ZNS3 | 1 | 07 11 9 905 829 | | | | |
| 22 | | VORNE | 1 | 36 31 2 060 227 | | | | |
| 23 | | | 1 | 34 11 2 060 121 | | | | |
| 25 | | | 1 | 34 11 2 060 117 | | | | |
| 26 | | 4MM III | 1 | 07 11 9 986 240 | | | | |
| 27 | | M6 | 1 | 23 11 2 322 368 | | | | |
| 27 | | M6-8-ZNS | 1 | 07 11 9 922 832 | | | | |
| 27 | | M6-8-ZNNIV SI | 1 | 07 11 9 905 543 | | | | |
| 30 | | M6X28 | 1 | 07 11 9 912 266 | | | | |
| 31 | | | 1 | 34 21 3 060 107 | | | | |
| 32 | | | 1 | 34 11 2 060 104 | | | | |
| 33 | | 6,300MM/D=17MM | X | 36 31 1 230 781 | | | | |
| 33 | | 6,350MM/D=17MM | X | 36 31 1 230 782 | | | | |
| 33 | | 6,400MM/D=17MM | X | 36 31 1 230 783 | | | | |
| 33 | | 6,450MM/D=17MM | X | 36 31 1 230 784 | | | | |
| 33 | | 6,500MM/D=17MM | X | 36 31 1 230 785 | | | | |
| 33 | | 6,550MM/D=17MM | X | 36 31 1 230 786 | | | | |
| 33 | | 6,600MM/D=17MM | X | 36 31 1 230 787 | | | | |
| 33 | | 6,700MM/D=17MM | X | 36 31 1 230 788 | | | | |
| 33 | | 6,800MM/D=17MM | X | 36 31 1 230 789 | | | | |
| 33 | | 6,750MM/D=17MM | X | 36 31 1 231 241 | | | | |
| 33 | | 6,850MM/D=17MM | X | 36 31 1 231 242 | | | | |
| 33 | | 6,900MM/D=17MM | X | 36 31 1 231 243 | | | | |
| 33 | | 6,950MM/D=17MM | X | 36 31 1 231 244 | | | | |
| 33 | | 7,000MM/D=17 | X | 36 31 1 231 245 | | | | |
| 33 | | 7,050MM/D=17 | X | 36 31 1 231 246 | | | | |
| 33 | | 7,100MM/D=17 | X | 36 31 1 231 247 | | | | |
| 33 | | 7,150MM/D=17 | X | 36 31 1 231 248 | | | | |
| 33 | | 7,200MM/D=17 | X | 36 31 1 231 249 | | | | |
| 33 | | 5,8 | X | 36 31 4 038 375 | | | | |
| 33 | | 5,9 | X | 36 31 4 038 376 | | | | |
| 33 | | 6,0 | X | 36 31 4 038 377 | | | | |
| 33 | | 6,1 | X | 36 31 4 038 378 | | | | |
| 33 | | 6,2 | X | 36 31 4 038 379 | | | | |
| 34 | | LINKS | 2 | 36 31 4 038 143 | | | | |
